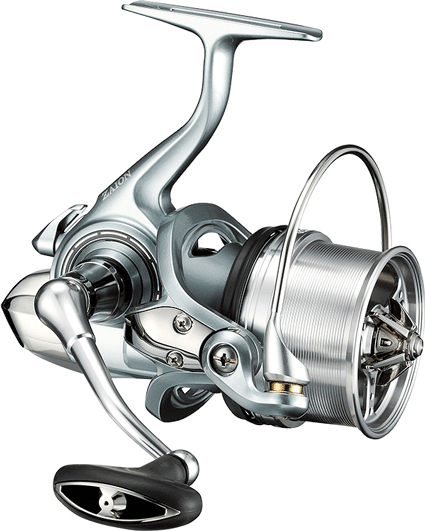

GRAND SURF 25
|
GRANDSURF 25
06PE |
|
|
|
| Lineup |
 |
 |
---------- |
---------- |
GRANDSURF 25
06PE |
GRANDSURF 25
15PE |
|
|
|
|
|
|
|
|
|
|
|
Lightweight and compact 25mm stroke long speculation.
Multi-functional compact machine such as waterproof / durable technology
"Magshield" and air rotor that realizes
light rotation with good response. A new open face spool has been adopted
to achieve a significant weight reduction.
Excellent compatibility with short rods. It is the true value of the light
tackle that you can experience the direct fish
of Sillaginidae. The shape of the spool and line guard has been reviewed, and the "thread drop prevention mechanism
" has been renewed. Equipped with a high-grip T-shape plage knob that is non-slip and fits naturally. |
|
Equipped with a renewed thread drop prevention mechanism.
The 25mm stroke series is equipped with a new line guard and a new shape
spool. When a thread falls,
the line is wound around the spool to prevent it from entering the main
shaft.
The cancellation method is as follows.
| <Recovery method when thread falls> (* The photo is Powersurf SS
QD) |
 |
|
 |
|
 |
[At the time of thread drop]
Wrap around the new shape spool |
- |
[Drag free]
Loosen with the veil closed |
- |
When the line is pulled out,
the spool spins in the direction
of the arrow and the return
is completed. |
|
|
■ Notes
Make sure that the line guard does not come off the inner rail of the rotor when the thread drop condition
is resolved. If it has come off, start using it with the line guard returned
to the rail.
The non-drag specification Grand Surf 25 has a different release method.
In the open veil state, pull out
the line and eliminate the thread drop state. |
| Technology details |
■ MAGSEALED
 For throwing fishing only. It is an extremely special spinning reel that
has refined material engineering and researched the ultimate form of
lightness and flight distance. It has a wide caliber and a unique spool
shape that inclines forward to increase the flight distance,
and the spool is projected more to reduce the load of line emission
to increase the stroke amount. At the same time, it was also a genre
in which the technology of devising countermeasures against water
and salt that inevitably invaded the interior of the engine, parts and
bodies that were significantly lighter, was required. Under these
circumstances, it is no exaggeration to say that the equipment
of "Magshield", which is incorporated as a waterproof and dustproof
"wall" today, was born from a revolutionary progress in this genre.
The center of the "Mag Shield" set to surround the inside of
the rotor
is the "Mag Oil", which has the property of reacting to magnetic
force, born from
the shield technology of space suits. The smoothness due to the oil keeps
the sense of rotation
with zero friction while throwing, rusting (searching), and rolling. The fact that an oil film made
of "mag oil" continues to protect seawater and dust from entering
the engine inside the rotor,
which is constantly winding the handle. It protects the inside with the
goal of universality.
The more you roll it up and the more you use it, the more you can experience its ability. |
|
■ AIR ROTOR
An air rotor with a structure that can be called a rotor revolution.
The optimum rim structure with a unique shape distributes the load,
resulting in significant weight reduction with the same strength.
The rotor balance has also been improved, achieving a light rotation
with good response. |
|
■ ZAION
An air rotor with an epoch-making structure that can be called the
"rotor revolution". Optimal rim structure improves rotor durability
by distributing the load. As a result, the weight is reduced by about 15%
at the same time with the same strength. By improving the rotor balance,
it also contributes to further improvement of the rotation feel.
Daiwa's original "DS5 (fiber reinforced special plastic for reels)"
is used as the material. |
|
■ DIGIGEARⅡ
Daiwa's original digital design technology "Digi Gear" has evolved
further.
In order to realize the ideal tooth surface derived by digital analysis,
we have adopted ultra-high precision machine cutting technology
to achieve tooth surface accuracy that is several times higher than that
of forged gears. Durability is improved by applying special lapping processing
to the drive gear and optimally balancing the pinion gear and drive gear. |
|
| Functions / specifications |
Features |
| DS5 (rotor material) |
Fiber-reinforced special plastic for reels created
by Daiwa's original technology. |
Foldable
Aluminum machine cut handle |
High-rigidity machine-cut handle that provides a stable winding feeling.
Folding type with excellent portability. |
| Crosswrap |
Accurate winding is an important factor that reduces line troubles.
"Cross wrap" adopts a twillwinding method with a large winding
thread angle,
and is a method of cross winding to prevent
the line from biting into the spool winding part and the thread from shifting.
Especially when using fine yarn or PE line, the reduction of line trouble
is remarkable, and at the same time, comfortable flight is realized. |
| AIRBAIL |
The smooth bale shape with no unevenness that allows the line to flow
to the line roller dramatically reduces thread rattling trouble. Furthermore,
by making it a hollow structure, the weight is not changed and the strength
is greatly increased. |
| Twist BusterⅡ |
By taping the line roller and rolling the line, the thread twist generated
by the rotation of the rotor is offset. The thread twist, which is said
to be the fate of spinning reels, has been largely eliminated.
Achieve comfortable fishing by drastically reducing line troubles. |
| Shower washable |
Shower washable Can be washed with running water.
(Maintenance according to the instruction manual is required after cleaning) |
| Cast lock manual return |
When the bale is opened during casting, the rotor rotation is locked
to prevent accidental bale reversal during casting. In consideration
of safety, the bale will be returned manually by a
manual return method. |
| CRBB number / total BB number |
0/6 |
|
|
| Specification table |
Item
name |
Gear
ratio |
Handle 1
rotation
(cm) |
Weight
(g) |
Max
drag
(kg) |
Line capacity |
Bearing |
Price
[JPY] |
Product
Code |
Parts
Scheme |
Nylon Line
(lb-m) |
PE Line
(PE-m) |
BB |
roller |
| 06PE |
4.7 |
94 |
380 |
8.0 |
-
|
PE 0.6-250m
PE 0.8-200m
|
6/1 |
JPY 23,542 |
00059399 |
 |
| 15PE |
4.7 |
94 |
380 |
8.0 |
-
|
PE 1.5-200m
PE 2-150m
|
6/1 |
JPY 23,542 |
00059400 |
|
|
|
|
